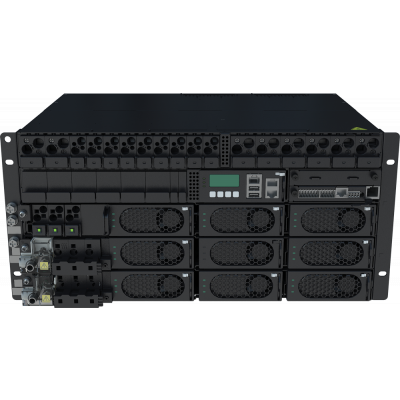

LBE-HDE24KW is a cutting-edge embedded power solution created by Lek Energy. Its innovative architectural design allows for a compact form factor and exceptional power density, with a maximum capacity of 24kW and 3U height. The DC distribution system can be expanded modularly, while the product's range of advanced features includes multi-level power-off support, easy installation and maintenance, and full digitalisation and intelligentisation capabilities.
Features:
- Compact 3U size and high power density
- Innovative architecture for easy power distribution expansion
- Wide AC voltage input range: 85VAC - 300VAC
- Multi-level power-off for 5G network diversification
- Intelligent peak shaving to modernize the grid
- Staggering power for efficient energy use and cost reduction
- Remote maintenance for reduced costs
Scenarios:
- Enterprise Telecom Scenario
|
Product Type |
LBE-HDE24KW |
|
System |
|
|
Dimension (W x D x H) |
442mm x 330mm x 130mm |
|
Weight |
< 20kg (without rectifiers) |
|
Installation Mode |
19 inch rack |
|
Cabling Mode |
Front inlet, front outlet |
|
Maintenance Mode |
In front |
|
Noise Level |
Meet ETSI300753 standard Class 3.1 requirements |
|
Height of Power Embedded Power* |
3U |
|
Number of Module Slots* |
6 |
|
AC Distribution |
|
|
Input Mode |
220/380VAC three-phase four-wire, compatible with single phase |
|
Input Voltage |
Three phase: 147VAC-519VAC; single phase: 85VAC-300VAC |
|
Input Frequency |
45Hz - 65Hz, rated value: 50Hz/60Hz |
|
Input Capacity |
1 x 63A/3P MCB |
|
SPD |
Nominal lightning strike discharge current 30kA (8/20μs) |
|
DC Distribution |
|
|
Output Voltage |
Normal mode: 42VDC - 58VDC, rated value: 53.5VDC5G mode: 57VDC constant (must be used together with lithium battery)5G mode: 57VDC constant (must be used together with lithium battery) |
|
Maximum Capacity |
Three phase: 24kW; single phase: 18kW |
|
Battery Branch |
Dual OT terminal,2 x 200A |
|
LLVD Branch |
2 x 125A MCB, 3 x 63A MCB |
|
BLVD Branch |
2 x 63A MCB, 2 x 32A MCB, 2 x 16A MCB |
|
SPD |
Nominal lightning strike discharge current: Differential mode - 10kA (8/20μs); Common mode - 20kA (8/20μs) |
|
Environment |
|
|
Operating Temperature |
-40°C to +65°C |
|
Storage Temperature |
-40°C to +70°C |
|
Operating Humidity |
5% - 95% (non-condensing) |
|
Altitude |
0 - 4000m (High temperature derating in the environment of 2000m - 4000m, the operating temperature is reduced by 1 for every 200m increase) |
