Euroka Integrated Diesel Generator 24KW 1000L
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for

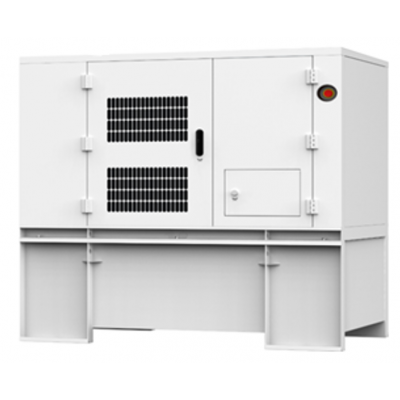

DGE-IDG24KW is an integrated, three-phase output diesel generator with a 24 kW output capacity, a 1,000-liter fuel tank, and a 1,250-hour maintenance interval, demonstrating excellent performance in diesel hybrid scenarios.
Features:
-
Easy maintenance, intelligent management
-
Low fuel consumption (6.32 L/h @ 100% load)
-
Highly integrated, anti-theft design
Scenarios:
- Off Grid
- Emergency power supply
|
Product Type |
DGE-IDG24KW |
|
|
General Specifications
|
Prime Power |
24 kW/30 kVA |
|
Standby Power |
26.4 kW/33 kVA |
|
|
Power Factor |
0.8 |
|
|
Rated Frequency/Rated Speed |
50 Hz/1500 rpm |
|
|
Rated Voltage (Line–Neutral/Line–Line) |
230/400 Vac |
|
|
Rated Current |
42 A |
|
|
Output Type |
Three-phase, four-wire (L1,L2,L3,N) |
|
|
Acoustic Noise Pressure (@1 m, 75% load) |
75 dB(A) (conform to ISO8528-10) |
|
|
Degrees of Protection |
IP23 |
|
|
Fuel Consumption (@100% load) |
224 g/kWh (6.32 L/h) |
|
|
Maintenance Interval |
1,250 hrs |
|
|
Start Battery |
12 Vdc/100 Ah |
|
|
Fuel Tank Capacity |
1,000 L |
|
|
Package Dimension (W × D × H)/Gross Weight |
2300 mm × 1050 mm × 2125 mm/1240 kg |
|
|
Net Dimension (W × D × H)/Net Weight |
2200 mm × 950 mm × 1925 mm/1160 kg |
|
|
Engine
|
Model | WP2.3D33E200 |
| Design |
4 cycle, In-line, Turbocharged |
|
|
Net Prime Power @ Speed |
30kW @ 1500 rpm |
|
|
Gross Prime Power @ Speed |
33 kW @ 1500 rpm |
|
|
Number of Cylinders |
4 |
|
|
Bore/Stroke (D × L) |
89 mm × 92 mm |
|
|
Displacement |
2.289 L |
|
|
Compression Ratio |
17.5 : 1 |
|
|
Oil Pan Capacity |
20.5 L |
|
|
Cooling Mode |
Water |
|
|
Radiator Tank Capacity |
17 L |
|
|
Alternator
|
Model |
XN184G |
|
Design |
Self excited and brushless |
|
|
Rated Power |
31.3 kVA |
|
|
Rated Voltage |
230/400 Vac |
|
|
Rated Frequency |
50 Hz |
|
|
Isolation Level |
H |
|
| Environment
|
Recommended Operating Temperature |
|
|
Recommended Operating Altitude
|
|
|
|
1.Prime power: Power is applicable for supplying continuous power to a variable load without time limited. 2.Standby power: Power available at variable load with a limited time, only work for 1 hour in every 12 hours operation, which is just 110% prime power. 3.Fuel consumption: The density of diesel fuel is 0.85 kg/L, and diesel grade should comply with BS2869: 1998, Class A2 or ASTM D975 D2. |
||
