Franklin Home Power 14KWH 240VAC
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for

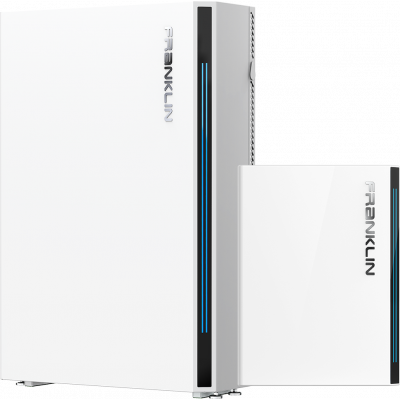

The FHP (Franklin Home Power) system incorporates various forms of on-site power generation into a reliable energy management system that can be operated through a user-friendly mobile application. Its components include the A Gate, a set of A Power batteries, and the FranklinWH mobile app.
Includes:
- aGate - Intelligent Energy Controller:
- aPower - LiPO4 Battery
- FranklinWH App - Management Software
Scenarios:
- Residential
- Warehouse
|
Performance |
|
|
Model Number |
Gate X-01-AU |
|
Battery Chemistry |
Lithium Iron Phosphate (LFP) |
|
Usable System Energy |
13.6 kWh per unit, scalability up to 15 units 1 |
|
Aggregate Throughput |
43 MWh |
|
Nominal AC Voltage |
230 V / 240 V, 50 HZ |
|
Maximum Real Power (Continuous) |
5 kW |
|
Maximum Apparent Power (Continuous) |
5 kVA |
|
Rated Output Current |
21.7 A |
|
Rated Backup Output Current |
21.7 A |
|
Maximum Supply Fault Current |
10 kA |
|
Maximum Output Fault Current |
32 A |
|
Battery DC Voltage |
51.2 V |
|
Inverter Max Efficiency |
0.965 |
|
Round Trip Efficiency |
89%2 |
|
Noise Emission (Optimal) |
＜30 dB (A) |
|
Communications |
Ethernet / 4G / WiFi / Bluetooth |
|
User Interface |
FranklinWH App |
|
Warranty |
12 years |
|
Electrical Connection |
|
|
ax Over Current Protection Device Per aPower Branch |
32 A |
|
Max Over Current Protection Device Per Solar Branch3 |
63 A |
|
Max Grid Input Over Current Protection Device |
100 A |
|
Max Generator Input Over Current Protection Device4 |
100 A |
|
Max Over Current Protection Device Per Smart Circuits Branch |
63 A |
|
Electrical Interface |
|
|
Coupling |
AC Coupled |
|
Feed-in Phase |
Single Phase |
|
Connection Support |
L / N / PE |
|
Work Modes |
|
|
Self-Consumption |
|
|
Time of Use |
|
|
Emergency Backup |
|
|
Environmental |
|
|
Operating Temperature |
20°C to 50°C |
|
Operating Humidity (RH) |
Up to 95% RH, condensing |
|
Altitude |
4,000 m |
|
Ingress Rating |
aPower: IP67 (Battery and power converter system), IP56 (Wiring compartment) |
|
Storage Condition |
-10°C to 45°C |
|
Mechanical |
|
|
Dimensions (H × W × D) |
aPower: 1150 × 750 × 290 mm |
|
Weight |
aPower: 185 kg |
|
Installation |
Wall mount or floor mount |
|
Compliance & Certifications |
|
|
aPower |
IEC / EN62109-1, IEC / EN62109-2, UL1973, IEC / EN62477-1, |
|
aGate |
IEC / EN62109-1, IEC / EN62109-2, IEC / EN62477-1, |
|
Seismic |
AC156, OSHPD, IEEE 693-2005 (high) |
|
Environmental |
RoHS Directive 2011 / EU |
|
Emissions |
IEC61000-6-1, IEC61000-6-3 |
|
Country of Manufacture |
China |
