Sunman eArc Portable Solar Blanket 100w
Non-Trade customers are welcome to purchase.
For Trade customers, please Sign In or Register for a Trade Account
You are submitting an enquiry for

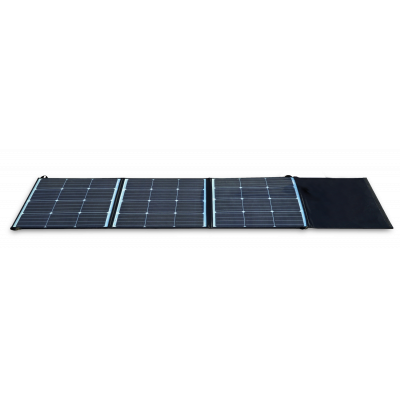

The eArc portable charger is an ultra light panel that can be plugged into the BlackBee Power Stations to capture and store energy. It comes in a foldable design with a side bag for easy transportation and use. It is perfect to provide a reliable source of power for personal devices such as phones, cameras and drones when outdoors.
Features:
- ULTRA-LIGHT: The power-weight ratio is more than 30W/kg due to patented material
- PORTABLE: Foldable design with side bag results in a much smaller size and easy to carry
- HIGH EFFICIENCY: The maximum power up to 175W/100W can product more than 500wh/300wh per day in most areas
- DURABILITY: The same materials as SunMan's unique eArche used lead to strong weather resistance and wide application range.
Scenarios:
- Camping
|
Electrical Characteristics |
|
|
Maximum Power |
100W |
|
Maximum Power Voltage |
19.0 |
|
Maximum Power Current |
5.27 |
|
Open-circuit Voltage |
23.5 |
|
Short-circuit Current |
5.67 |
|
Operating Temperature |
-40 to 85 degrees Celsius |
|
Maximum System Voltage |
600 V DC (IEC) |
|
Application Class |
Class A |
|
Power Tolerance |
0/+5 W |
|
Mechanical Characteristics |
|
|
Solar Cell |
Mono (5 inches) |
|
Number of Cells |
36 |
|
Folded Dimensions |
550x440x18 mm |
|
Unfold Dimensions |
550x1500x5 mm |
|
Weight |
3.5 kgs |
|
Colour |
Black |
|
Materials of Bag |
Waterproof nylon fabric |
|
Connector |
MC4 compatible |
|
Certification |
IEC61215 & CEC |
